Specifications

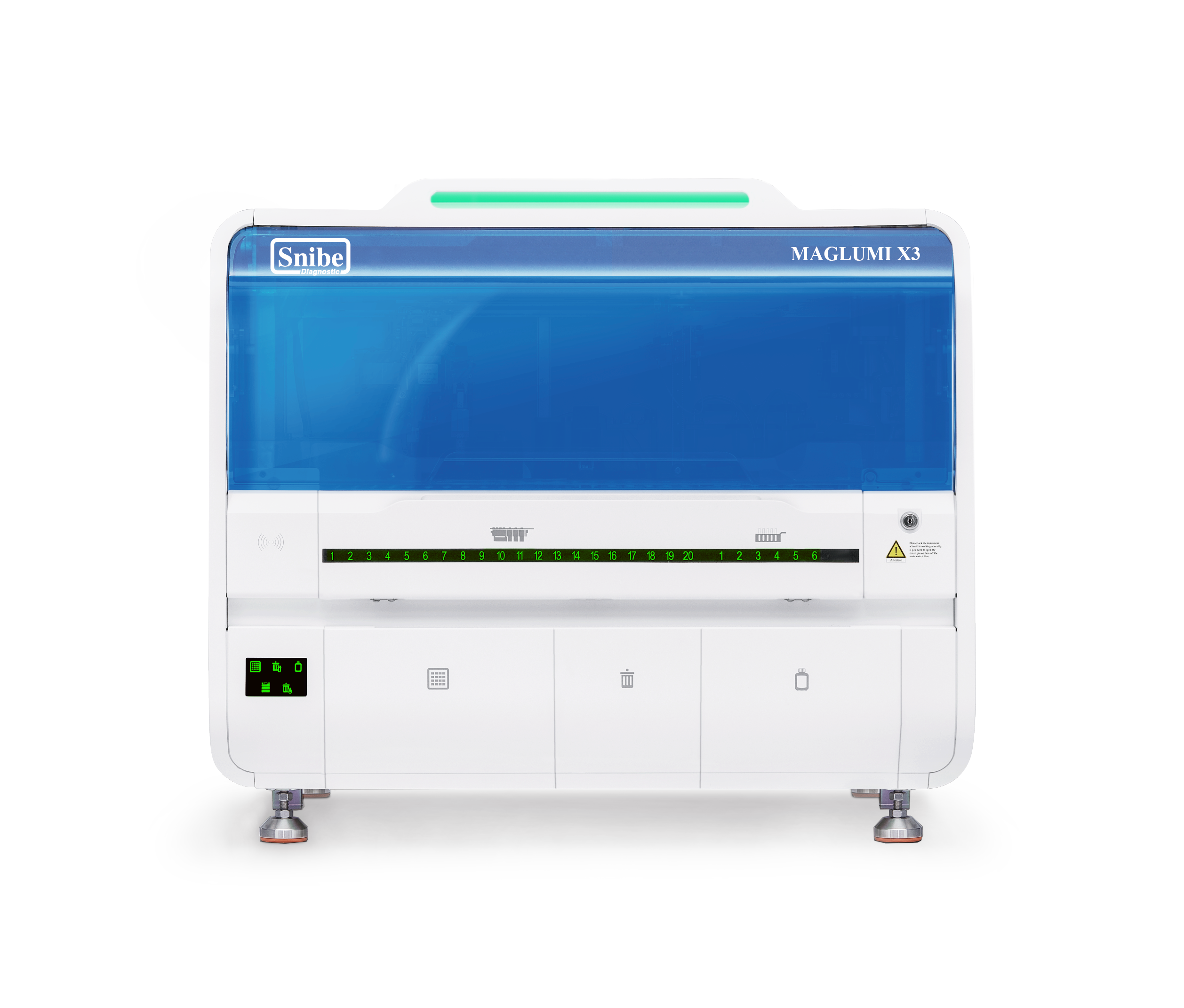

MAGLUMI X3 Overview
Target Users: Small to medium-sized hospitals/labs
Core Advantage: Space-saving design without compromising performance.
Key Specifications
| Feature | Specification |
|---|---|
| Throughput | 200 tests/hour |
| Footprint | < 0.68 m² |
| Throughput Density | 294 tests/hour/m² (industry-leading) |
| Sample Capacity | Not explicitly stated (see note below) |
| Reagent Positions | 20 |
| Incubation Positions | 80 |
Critical Features
-
Accuracy & Reliability:
-
Anti-light-pollution reaction cups: Ensures measurement precision.
-
Teflon-coated pipetting needle: Prevents carry-over contamination.
-
3-in-1 error detection: Liquid level, clot, and collision detection.
-
Integrated cuvette packaging: Prevents jams/blockages.
-
-
Efficiency & Convenience:
-
No-pause operation: Load/unload samples/reagents/cuvettes without interrupting tests.
-
Visual indicators: LED lights reduce manual checks for reagents/consumables.
-
Disposable-tip-free: Lowers consumable costs.
-
-
Performance:
-
Bidirectional temperature control: Stable incubation (37°C).
-
Intelligent washing tech: Reduces non-specific binding.
-
Full reagent compatibility: Supports all 256+ MAGLUMI® assays (thyroid, cardiac, infectious diseases, etc.).
-
-
User-Friendly Design:
-
Compact, one-side operation.
-
Easy maintenance and low failure rate.
-
Comparison to Larger Models
| Feature | X3 | X6/X8 |
|---|---|---|
| Throughput | 200 T/H | 450–600+ T/H |
| Automation | Standalone | TLA/LAS compatible |
| Sample Load | Manual | High-capacity (412+ positions) |
Feature：
- Throughput: up to 180 tests/hour
- 24 hours ready-to-use
- Time to first result: 17 minutes
- Dimensions and Weight 144×76×152cm, 228kg
Sample Loading
- Up to 144 primary tubes
- Continuous loading, STAT available
- Refrigerated sample area with independent power supply
Reagent Loading
- 25 reagents on board
- Continuous loading
- RFID reading all info of reagents
- Refrigerated reagent area
